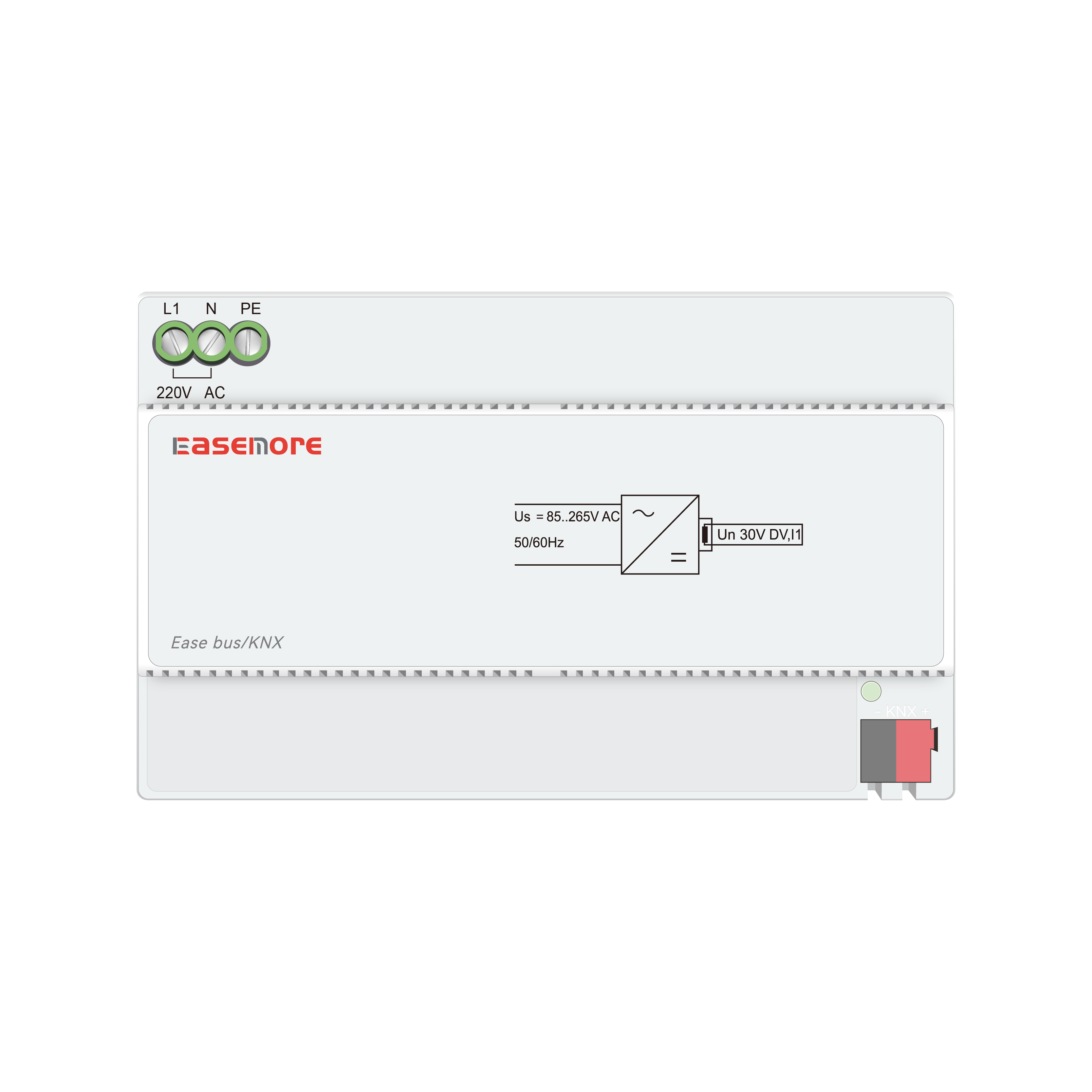

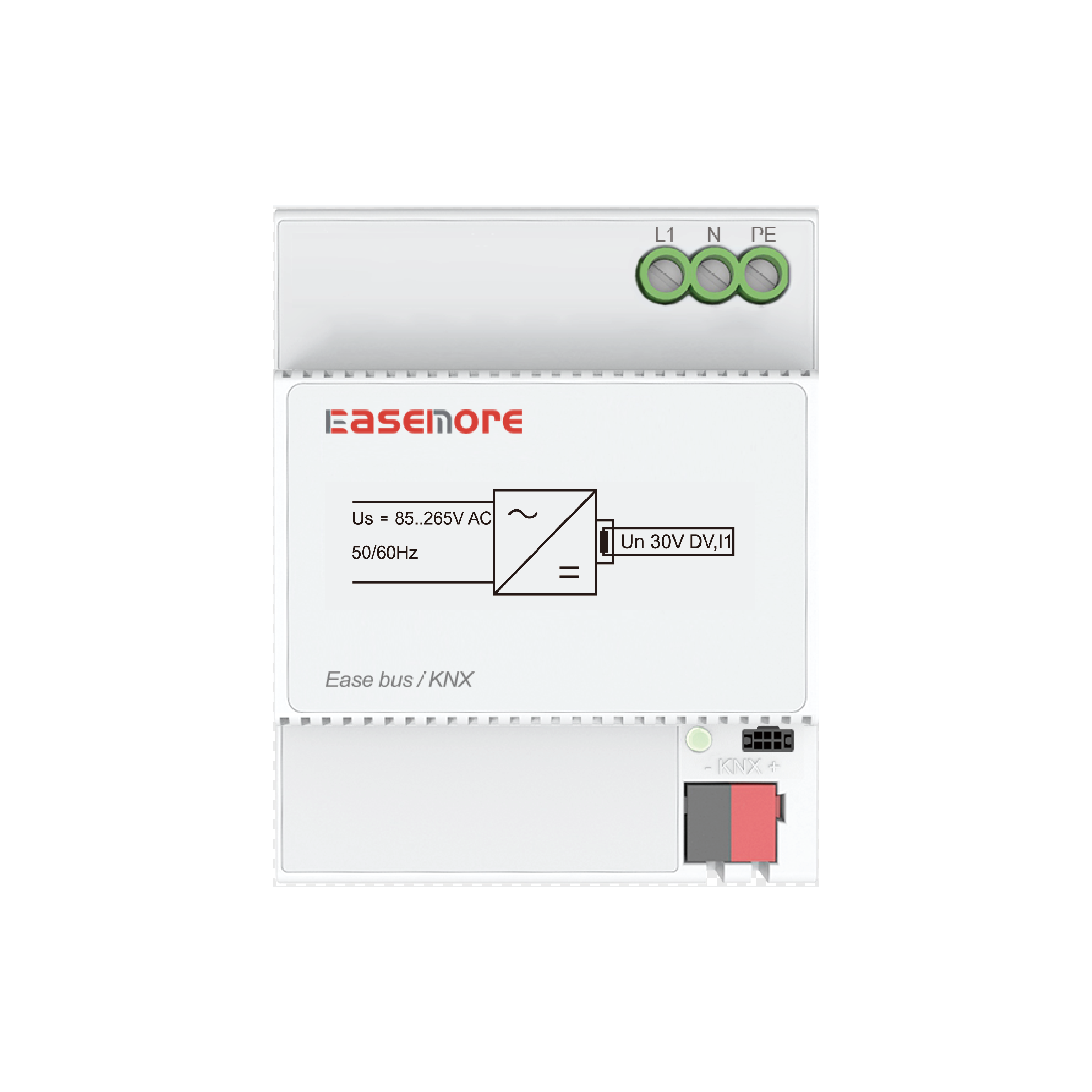

KNX Power Supply, 640mA

Used for powering the KNX system bus;

It can provide bus voltage for up to 64 bus devices and is equipped with an internal choke device for isolating the bus power supply.

With a reset button, it can provide a forced reset for the system.

Power supply voltage: 230 VAC, 50 - 60 Hz

Output voltage: DC 30 V ± 1V

Output current: 640mA, short circuit protection

Operating temperature: -5℃ to +45℃

Working humidity: 5% to 95% RH

Product size: 4P/8P

‍
