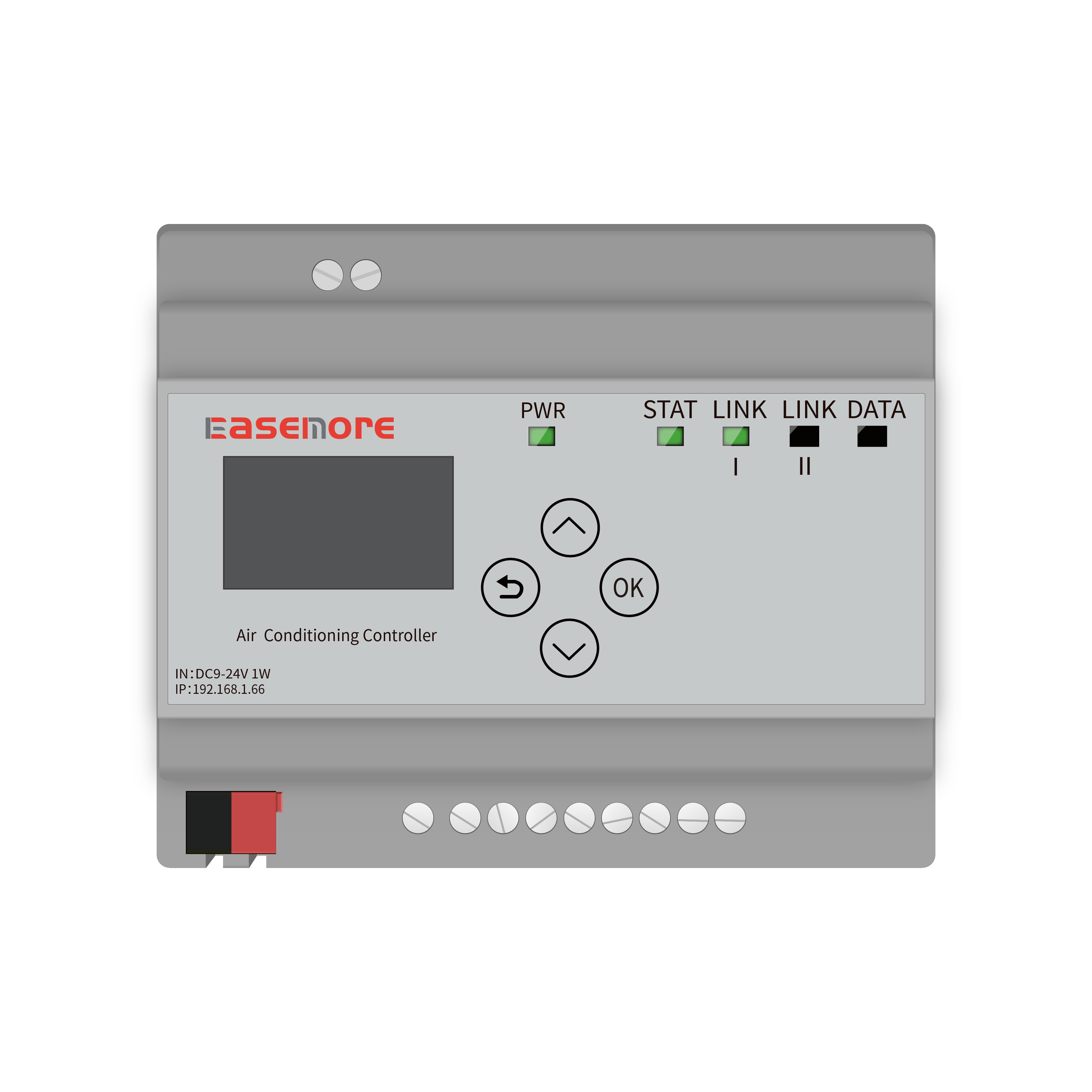

It is designed to be compatible with mainstream brands of central air conditioning systems, enabling control of the air conditioner's on/off, mode, temperature, and wind speed. It also provides signal output for the current room temperature and fault codes. The module supports standard KNX protocol interface and can be used for connecting to KNX protocol temperature control panels. A single gateway can support the control of up to 32 indoor units for one outdoor unit. The module supports web-based background debugging and can flexibly modify the KNX address segment of the air conditioner.
An external 12V power supply is required.
KNX terminal voltage: 30VDC
KNX terminal current: ≤10mA
Auxiliary working voltage: 12VDC
Auxiliary working current: <100mA
Operating temperature: -5 to +45℃ Working humidity: 5% - 95% RH
