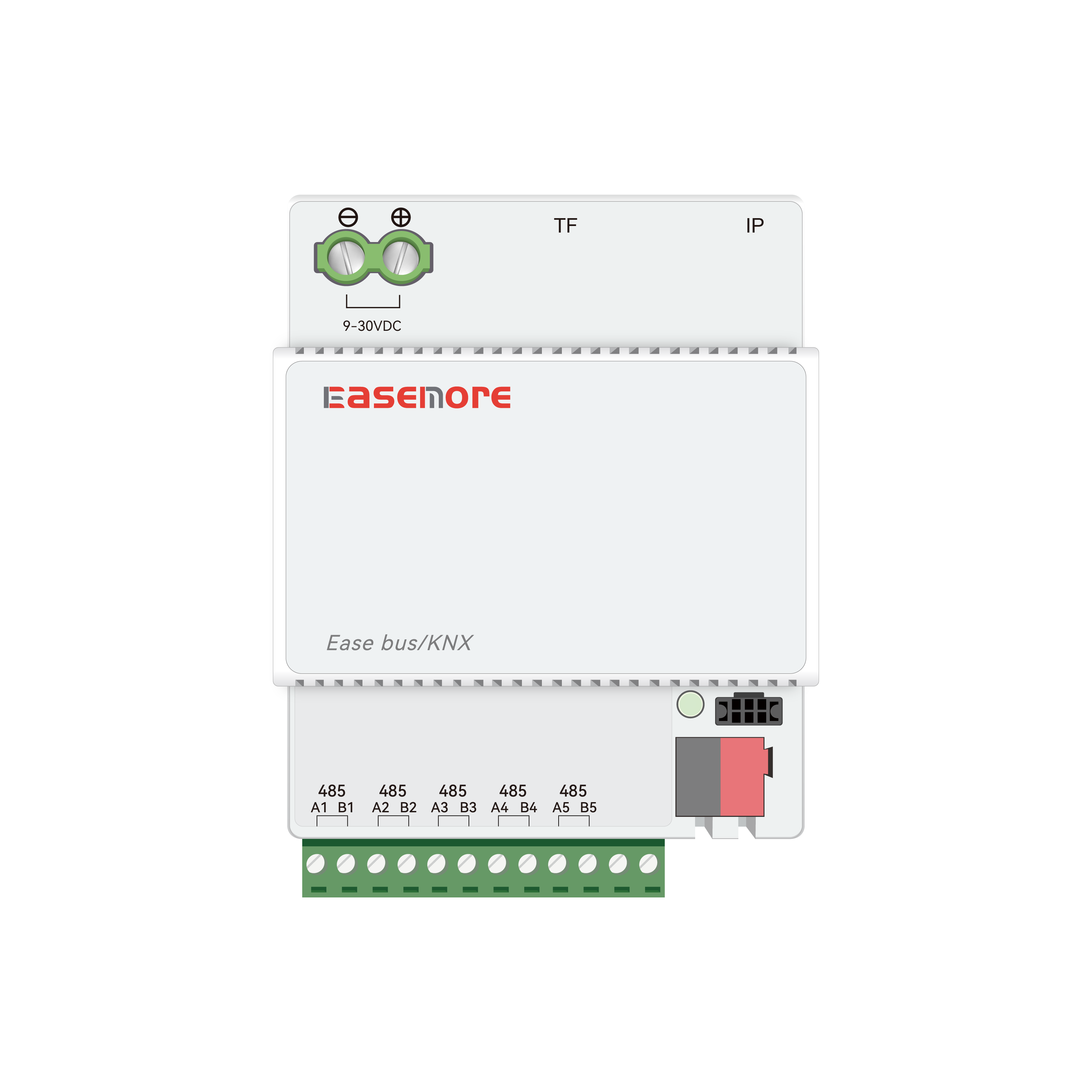

KNX Remote Control Module, 4P

It enables remote control of KNX system devices; supports the integration of online voice devices; supports the editing of background scenes, logic and timing functions.

The host supports simultaneous access by multiple mobile terminal devices, featuring the complete KNX protocol and the complete IP remote control protocol. It can connect to the EaseMore cloud server via multiple levels of routers (domain names), adapting to complex local area network environments. It also supports mobile network (2G/3G/4G) router connections to achieve remote control.

KNX terminal voltage: 30VDC

KNX terminal current: ≤ 10mA

Auxiliary working voltage: 9 - 30VDC

Auxiliary working current: < 500mA

Starting current: 2500 nA

Port: KNX, TCP/IP, 485, 232 (specifically depending on the model)

Operating temperature: -5 to +45 degrees Celsius

Working humidity: 5% - 95% RH
