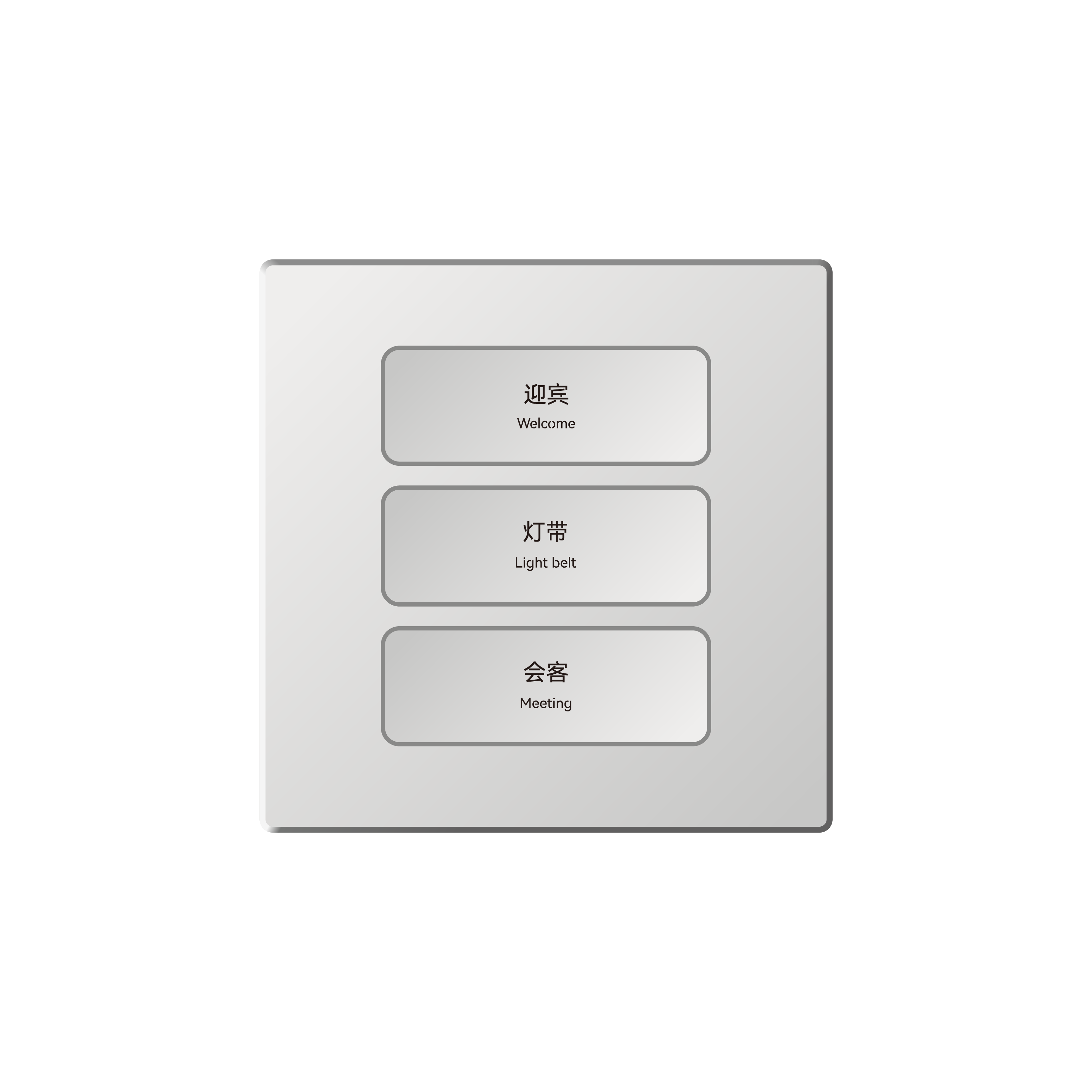

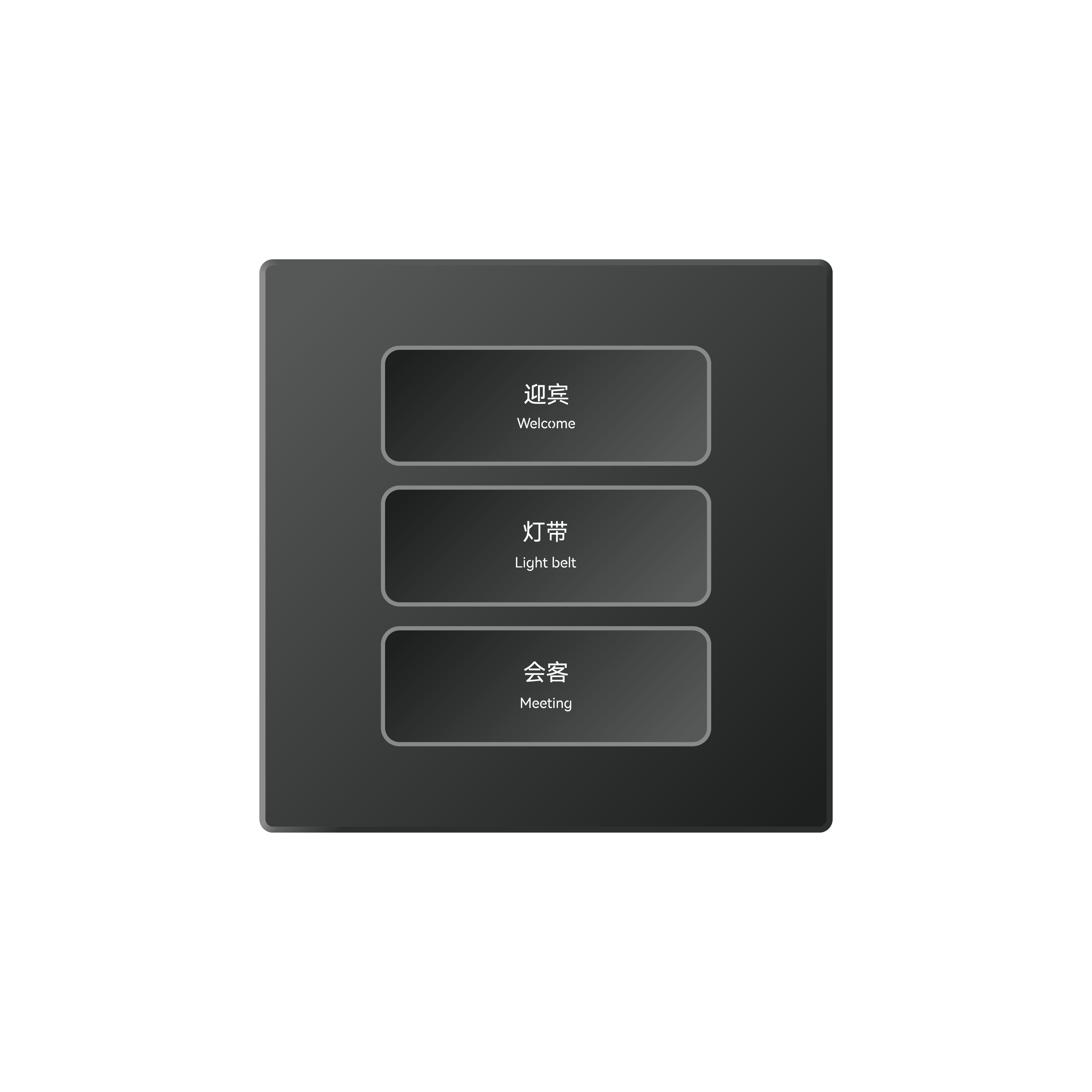

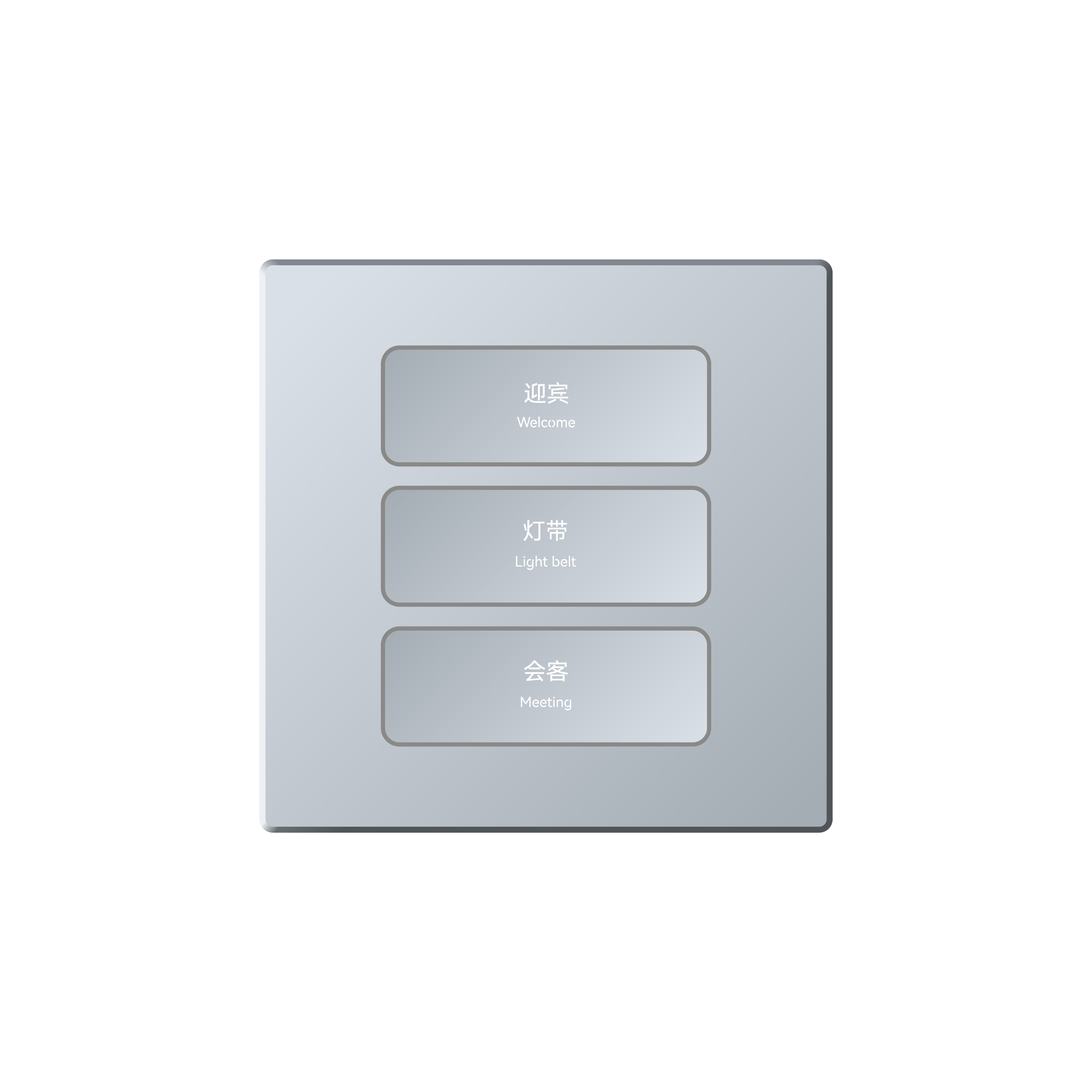

EaseJoy KNX Push Button Panel, 3-Button

The panel is made of aviation aluminum, and the buttons feature dual backlighting and status display.

Support near-field sensing function

Operating voltage: 30V DCKNX

Rated working current: ≤ 10mA

Auxiliary power supply operating voltage: 24VDC

Auxiliary power supply operating current: < 40mA

Close sensing distance: 20 cm

Operating temperature: -5℃ to +45℃

Working humidity: 5% to 95% RH
